Portable grinding & lapping machines

Go Back

VENTA
unigrindgallery
More information?
unigrinddownload

unigrind VENTA

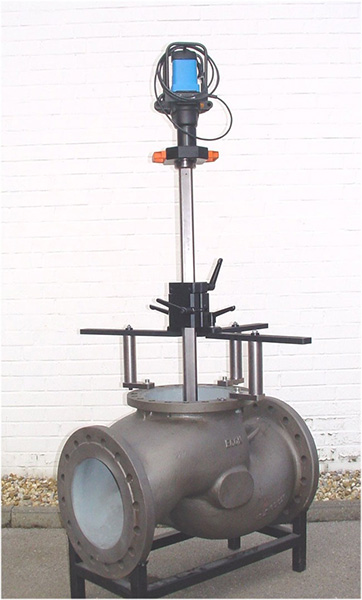

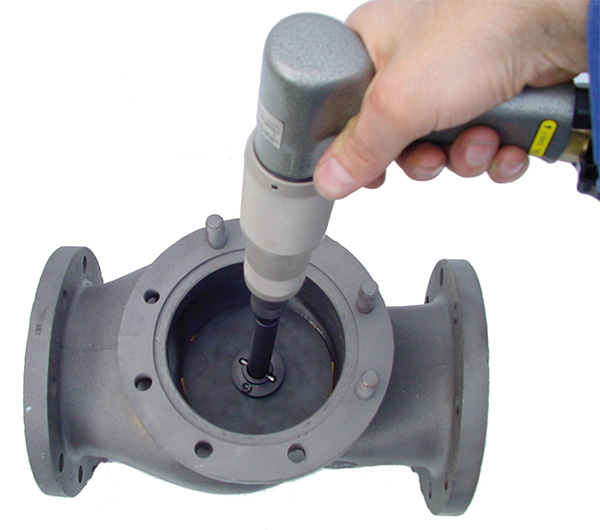

Portable grinding and lapping machines for working on valves with flat sealing surfaces:

  • Globe valves
  • Safety relief valves
  • Check valves

Working range: DN 8 – 1600 mm (¼“ - 64")

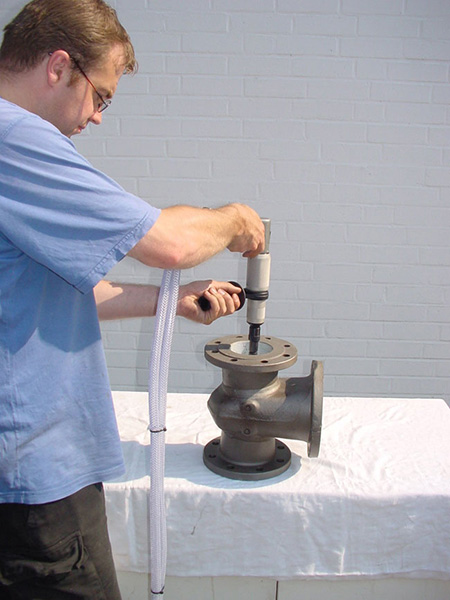

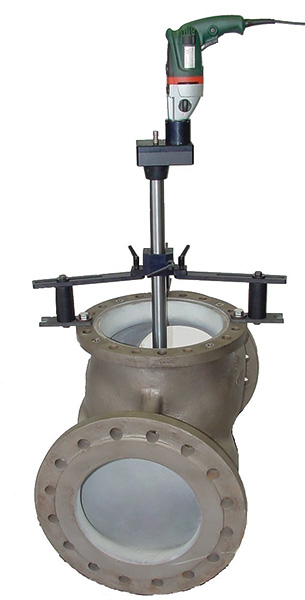

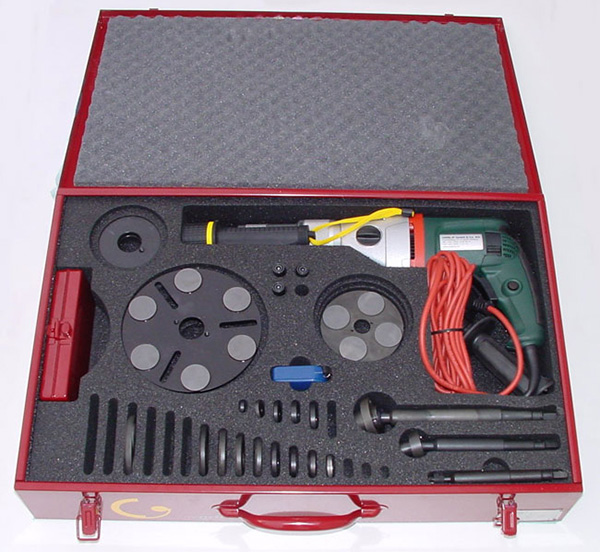

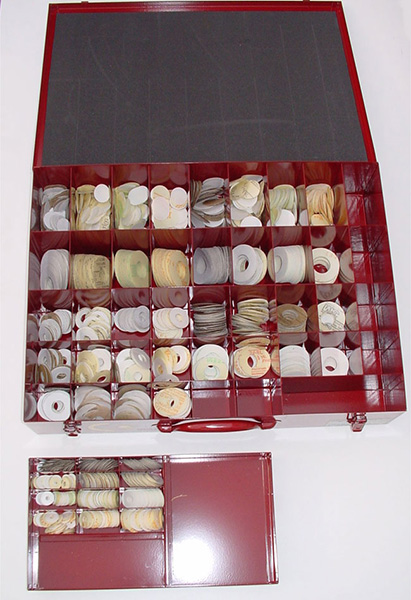

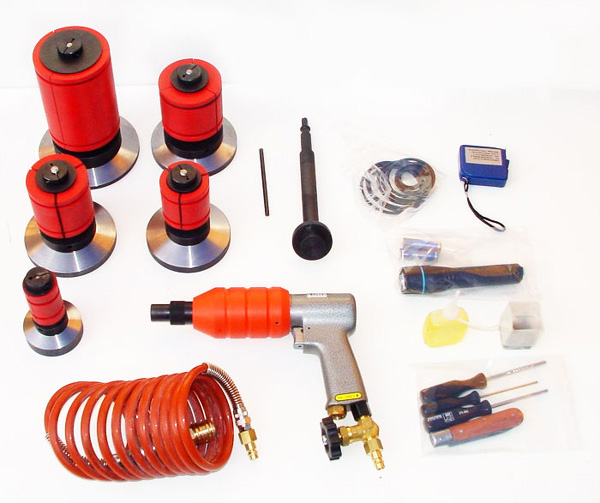

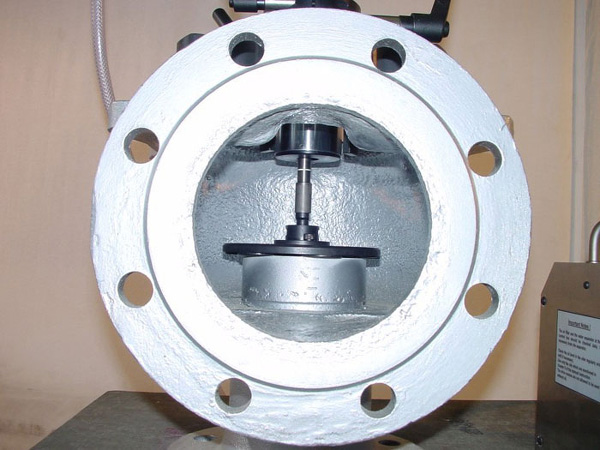

unigrind’s ideal solution for working on sealing surfaces in shut-off valves, check valves, control valves and safety relief valves both on-site and in-shop. Robust, low maintenance, inexpensive and easy handling.

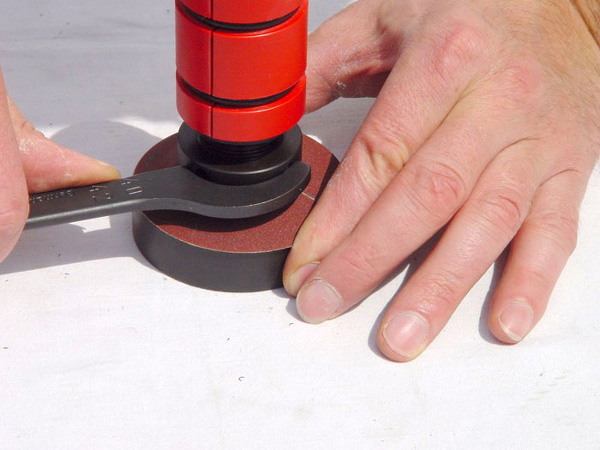

Hand guided grinding machines up to working range DN 200 mm (8”).




KVS
unigrindgallery
More information?
unigrinddownload

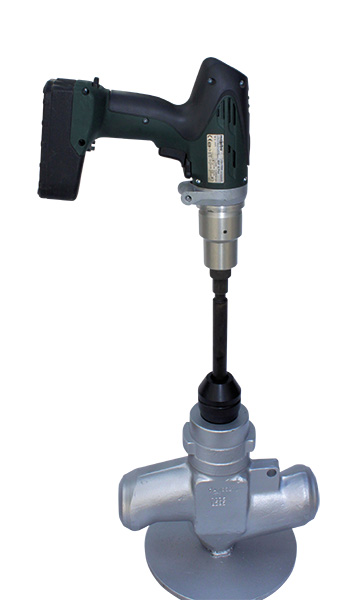

unigrind KVS

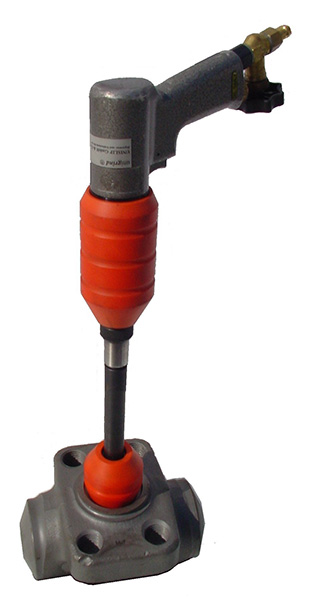

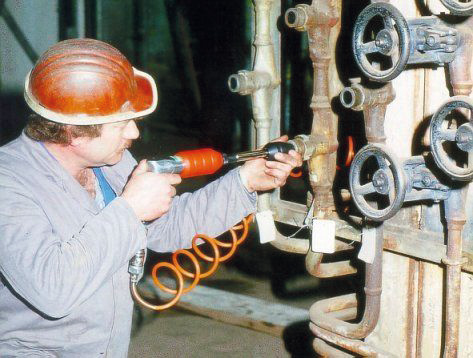

Portable grinding machine for working of valves with tapered seats:

  • Globe valves
  • Control valves

Working range: DN 8 – 300 mm ( ¼“ – 12“)

Standard angles are: 30°, 40°, 60°, 75°, 90° (other angles on request)

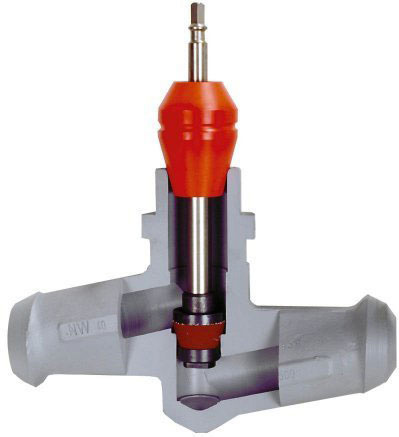

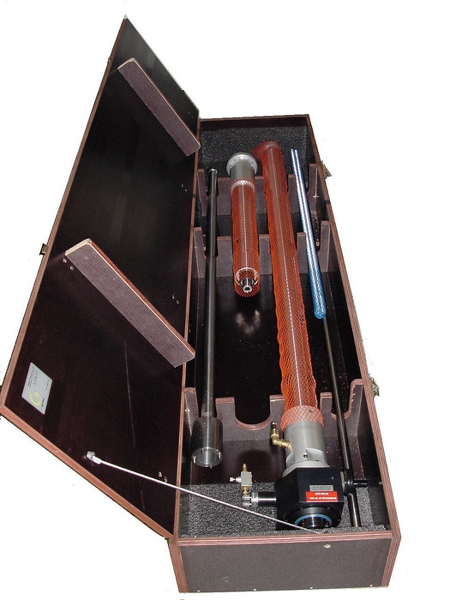

The complete unigrind grinding system for working on conical sealing surfaces in globe valves and control valves is suitable for both portable application and in-shop. Robust, low-maintenance, inexpensive and easy to handling.

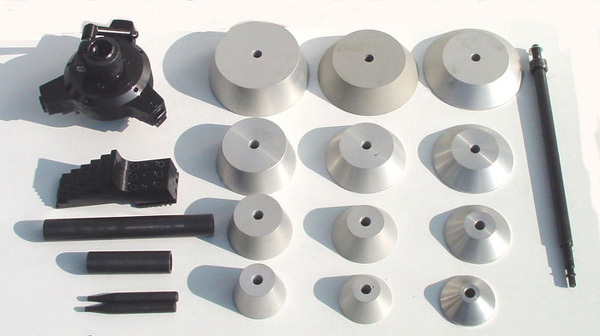

The grinding tools for the corresponding angles and nominal width can also be combined according to the customer`s individual wishes. The machine`s working range can be extended with additional tools at any time.




KVS-Linsensitz
unigrindgallery
More information?
unigrinddownload

unigrind KVS-LENS

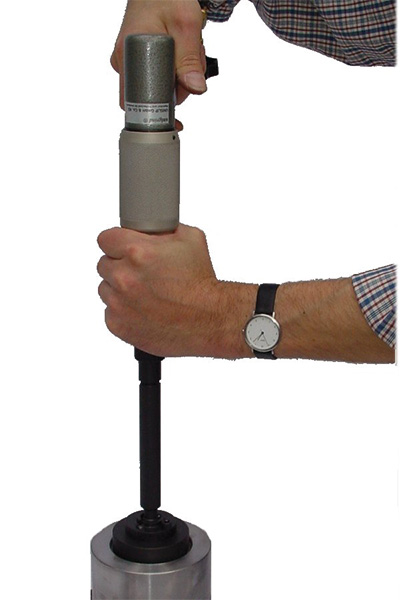

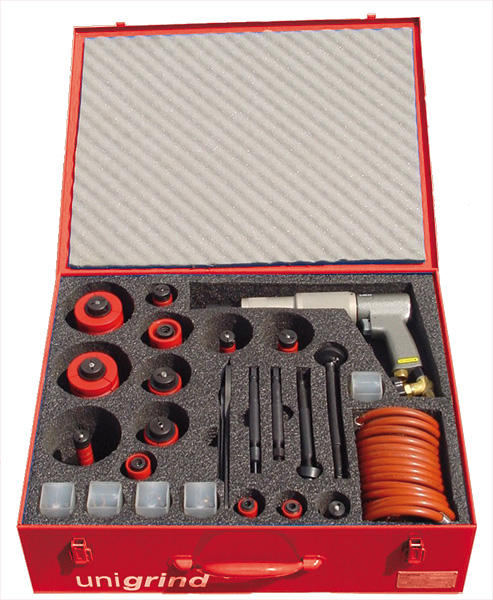

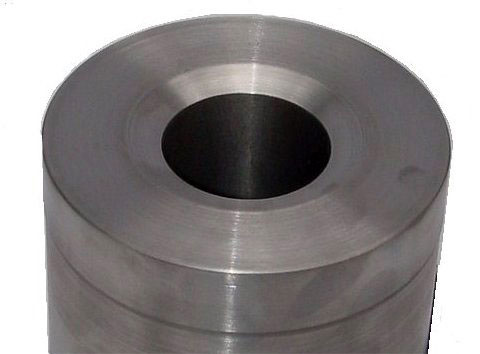

Portable grinding machine with special grinding tools for working on tapered sealing surfaces on pipes and flanges for metallic lens sealing rings on high pressure pipes, flanges and valves.

Working range: DN 8 – 300 mm (¼“ – 12“)

  • Sealing surface angle 140°
  • Grinding tools according to DIN and other manufacturer standards
  • Special tools for TechLok and GrayLoc



SVS 1
unigrindgallery
unigrindvideo
More information?
unigrinddownload

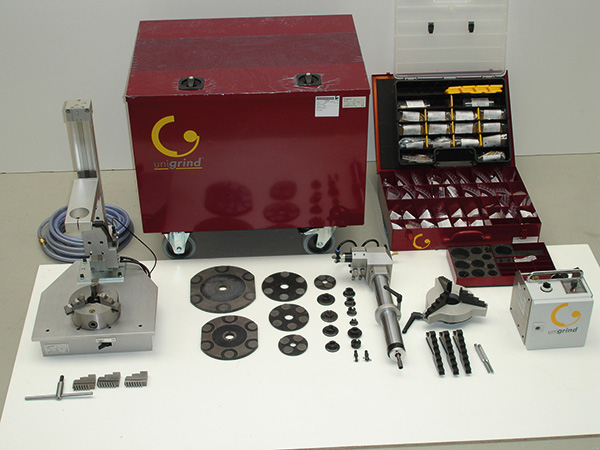

unigrind SVS 1

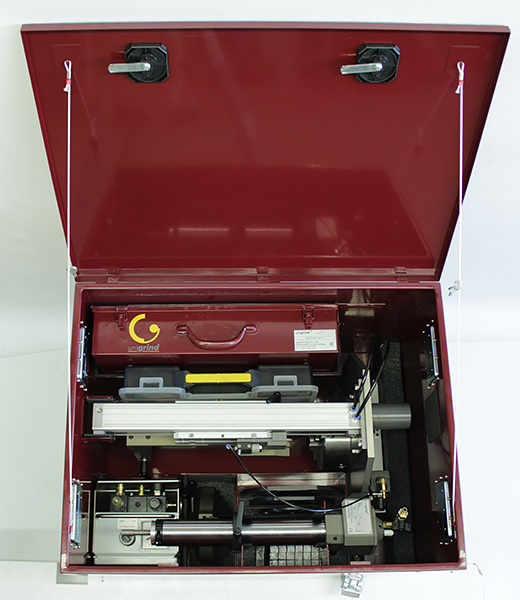

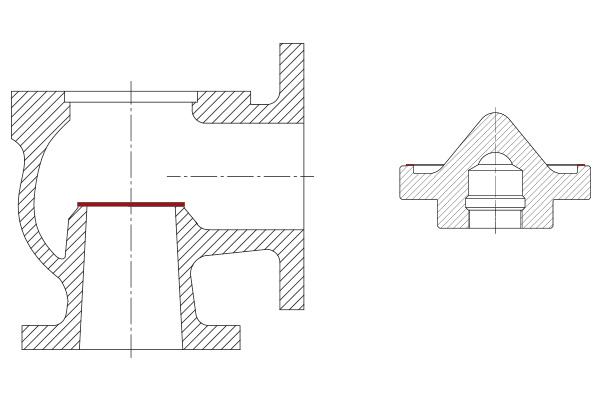

Portable grinding and lapping machine for working on sealing surfaces of safety (relief) valves and disks

Working range: DN 10 – 400 mm (3/8" - 16")

  • Crosshatched grinding/lapping to achieve absolute seat flatness
    Eccentricity adjustable 0 – 3 mm (0 - 1/8”)
  • Accurate adjustable grinding time
  • Easy and safe operation

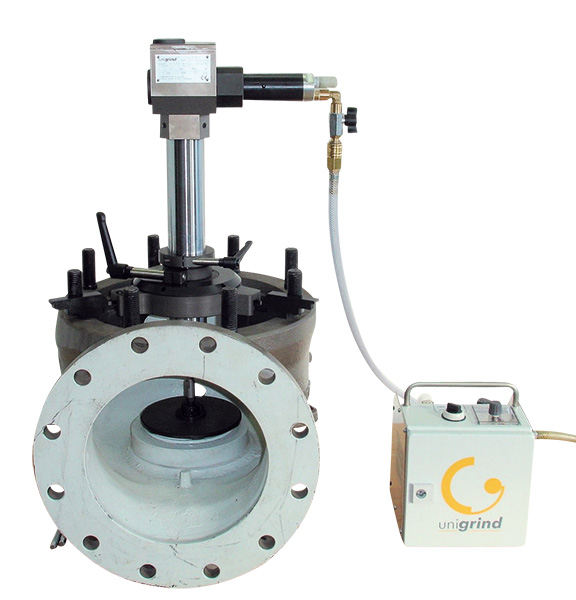

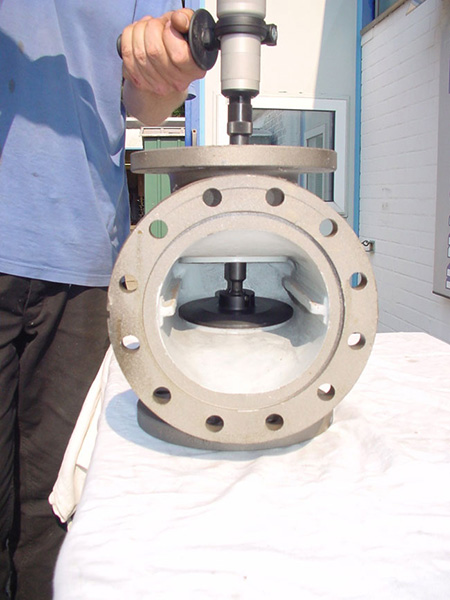

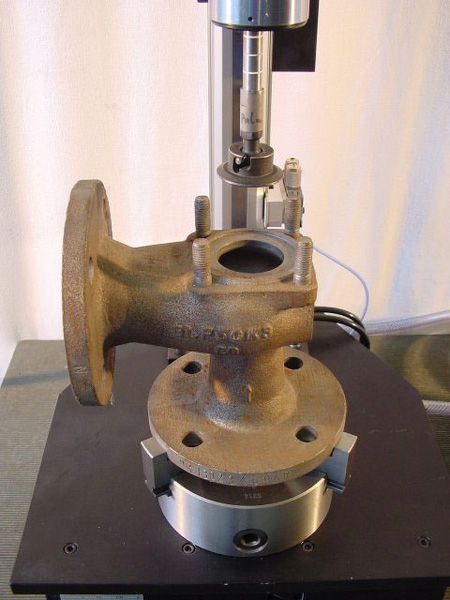

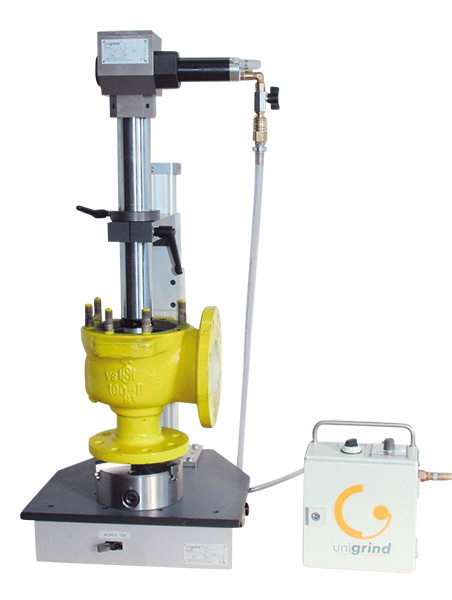

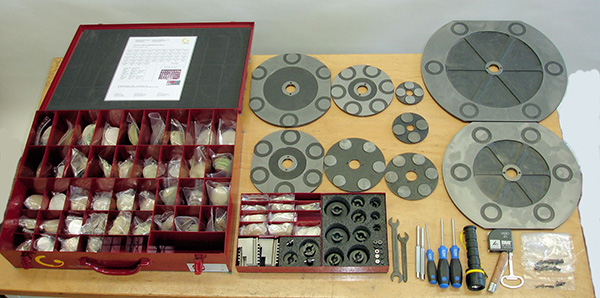

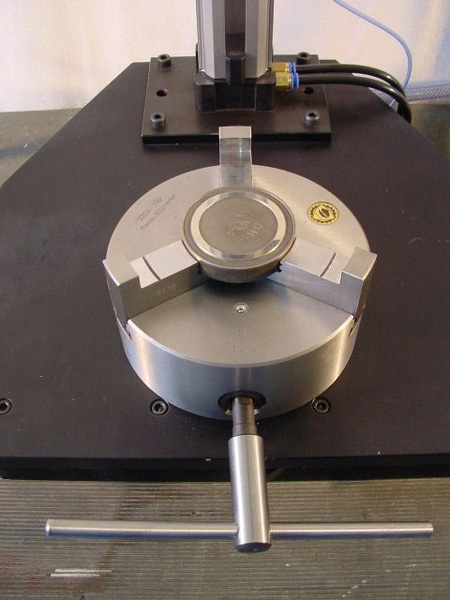

For grinding/lapping big valves and butt-welded valves the machine is mounted with 3-jaw chuck on the valve-housing. Small valves and globes are done on the machine stand.




SLIM
unigrindgallery
More information?
unigrinddownload

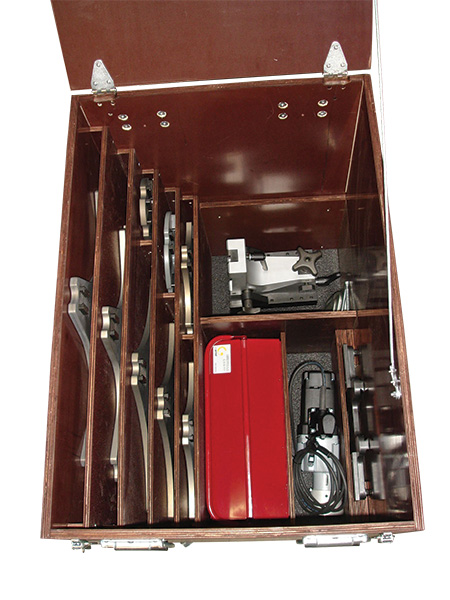

unigrind SLIM

Portable grinding and lapping machine for working on sealing surfaces of:

  • Gate valves
  • Swing check valves
  • Gate valve wedges and disks
  • Valve flanges

Working range: DN 15 – 1600 mm (3/4" - 64")

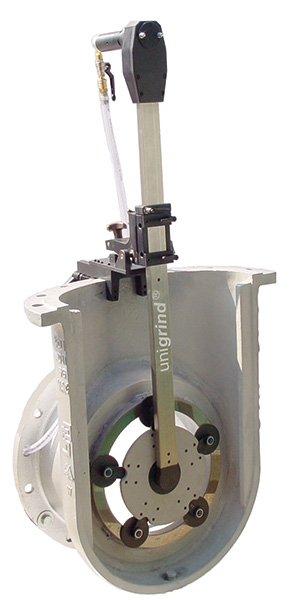

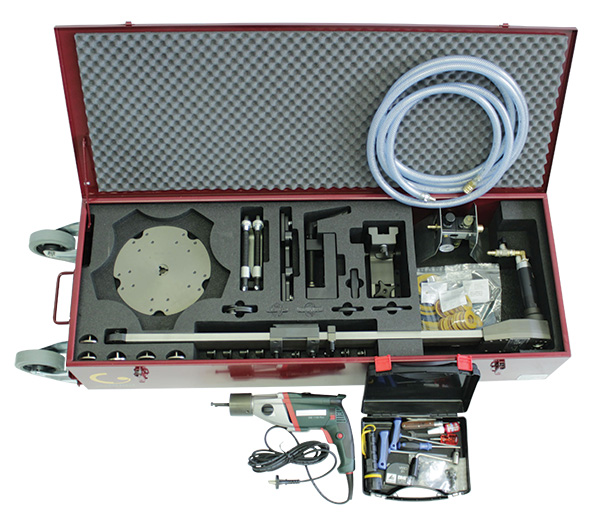

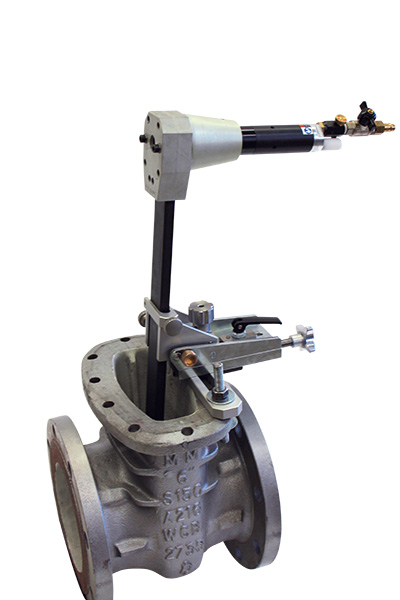

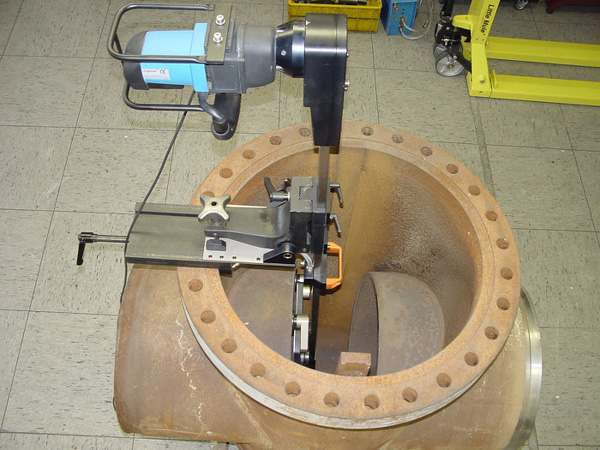

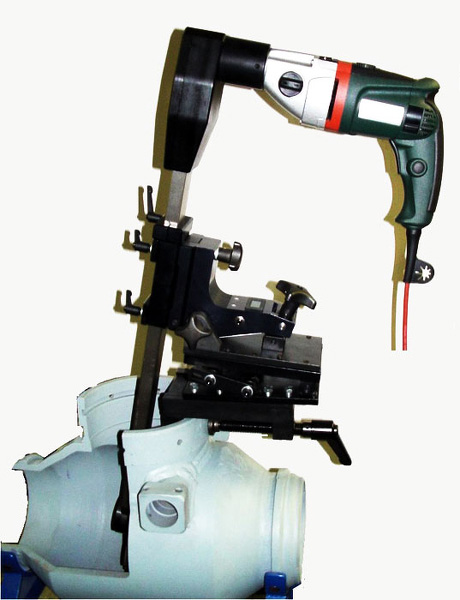

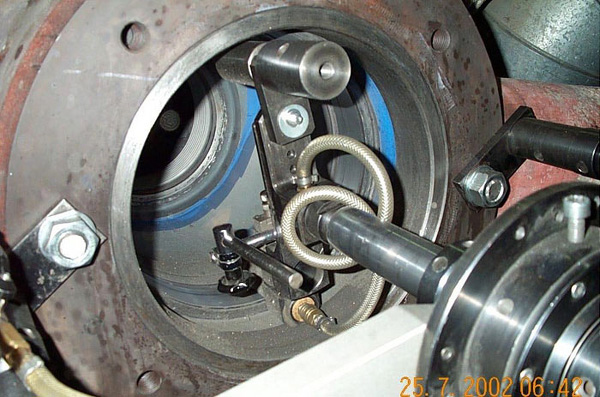

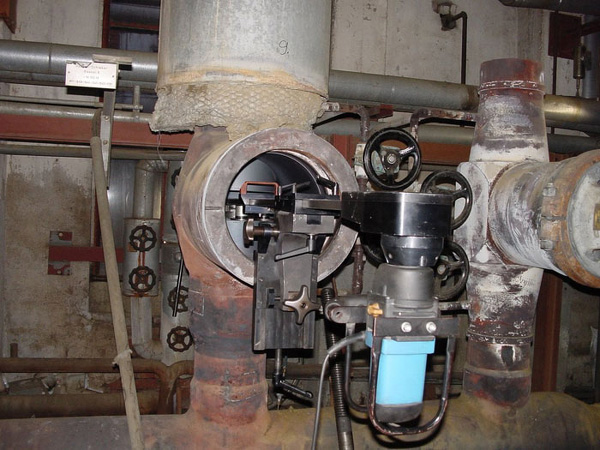

unigrind’s perfect grinding systems for working on sealing surfaces of gate valves and swing check valves, valve flanges and gate valve wedges. Suitable for use both on-site and in-shop.

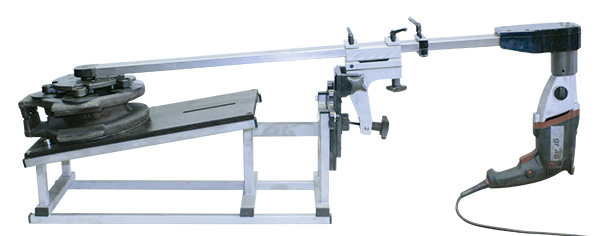

As an option unigrind’s gate valve grinding machines can be equipped with a swing check valve adapter-set as well as a portable grinding table for gate valve wedges.

The type SLIM 300 and SLIM 600 are also supplied in combined versions for gate valves and globe valves with flat sealing seat.




SHS 600
unigrindgallery
More information?
unigrinddownload

unigrind SHS 600

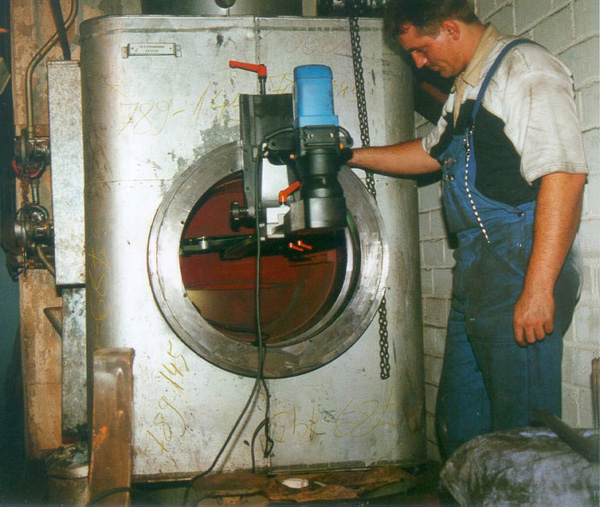

Portable high-speed gate valve grinding machine for working on
sealing surfaces of:

  • Gate valves
  • Swing check valves
  • Gate valve wedges and disks

Working range: DN 125 – 800 mm (5" - 32")

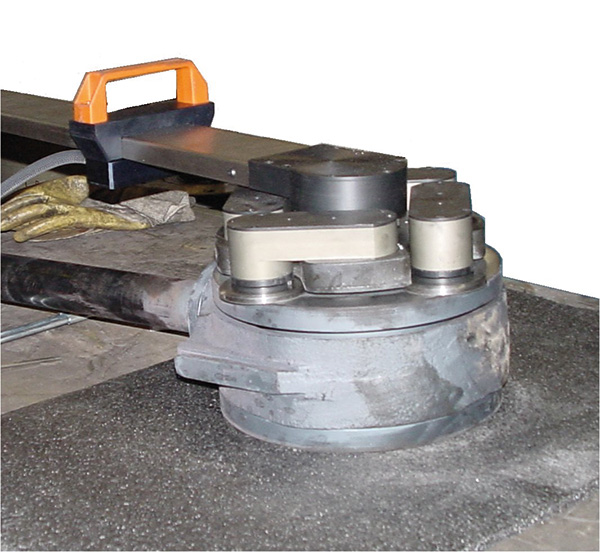

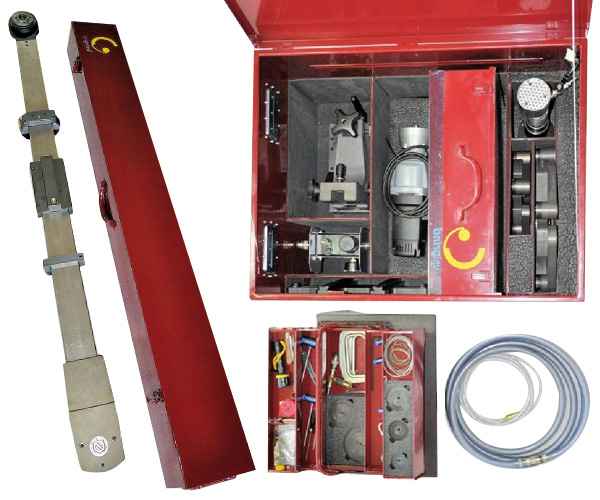

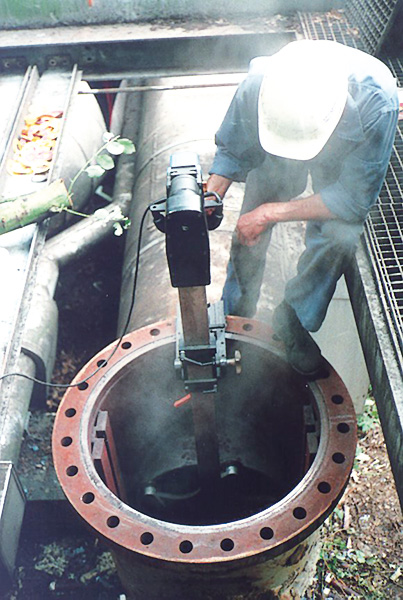

SHS 600 is the problem solving for grinding of heavily damaged, hardened and scaled sealing surfaces with simultaneous great time saving. With cutting speed 6-8 times above standard the SHS 600 achieves absolutely flat surfaces with high reduced grinding time.

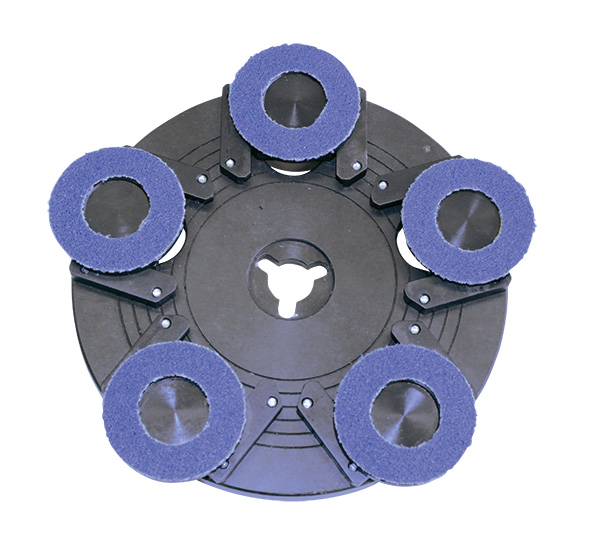

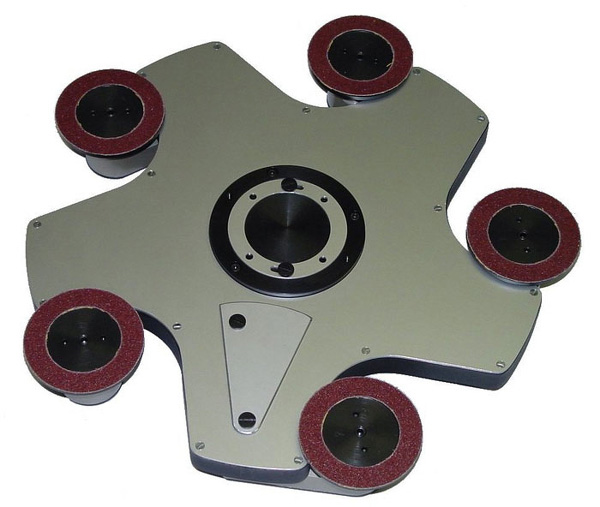

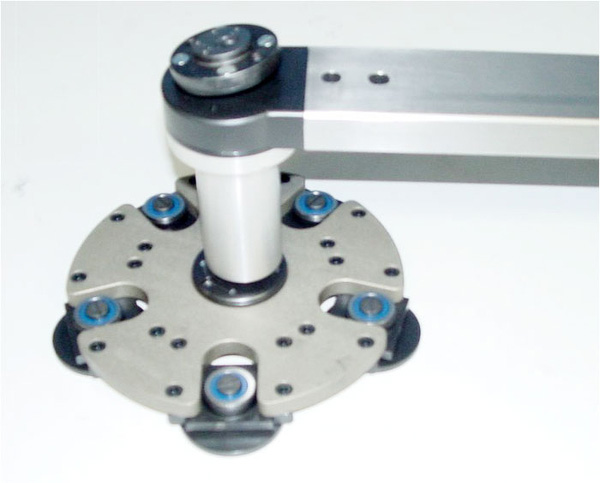

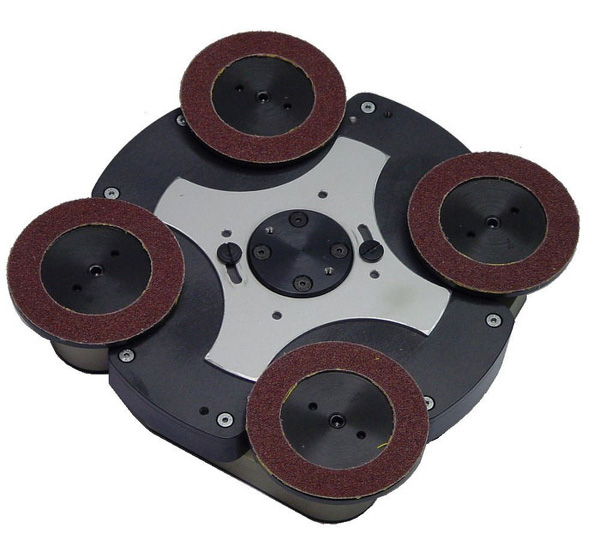

Planetenschleifscheiben
unigrindgallery
More information?
unigrinddownload

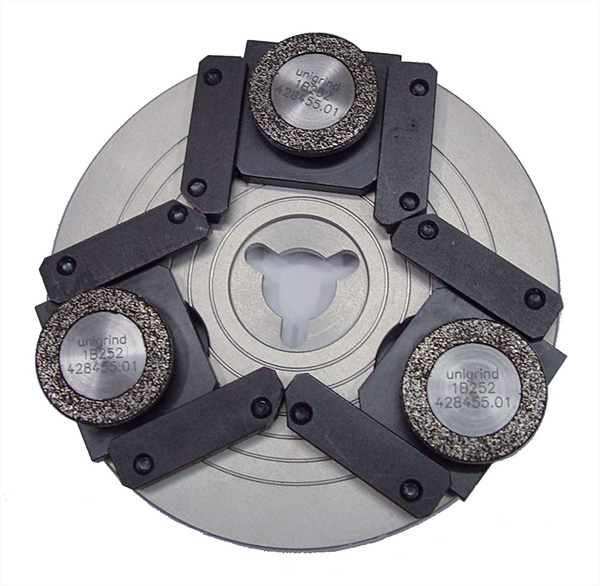

unigrind Planet grinding disks

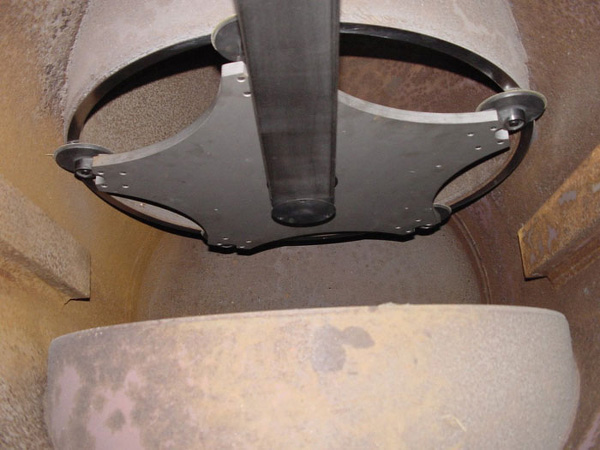

For grinding/lapping of sealing surfaces in gate, globe, check valves and gate valves wedges.

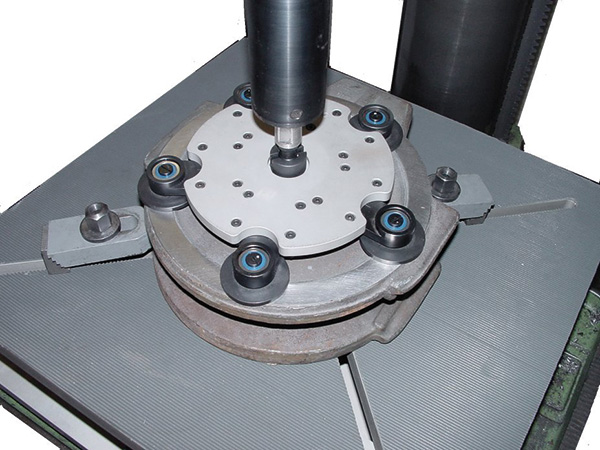

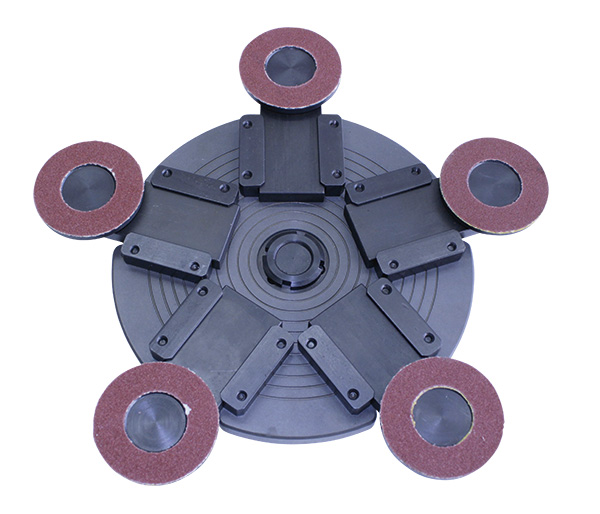

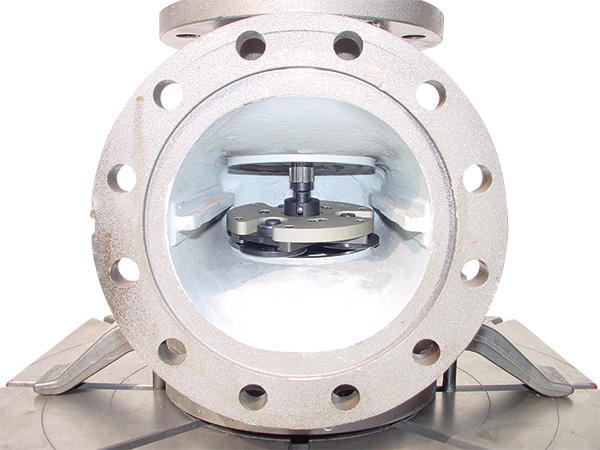

With adapter and appropriate tilt tables the planet grinding discs are an ideal completion for the stationary working on sealing surfaces for valves on drilling press and radial drill machine.

Working range:
Planet grinding disks DN 65-1600 mm (2 ½” - 64”)

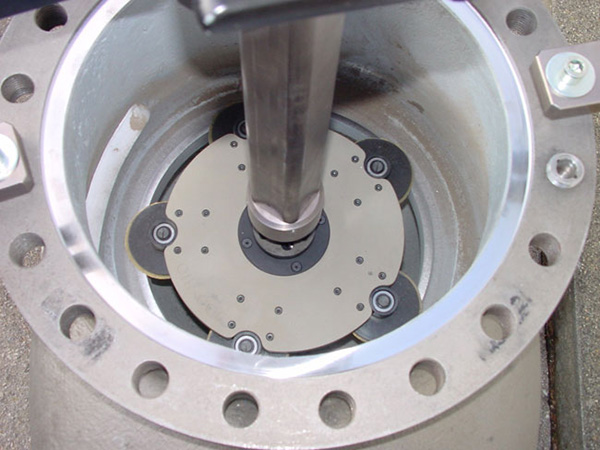

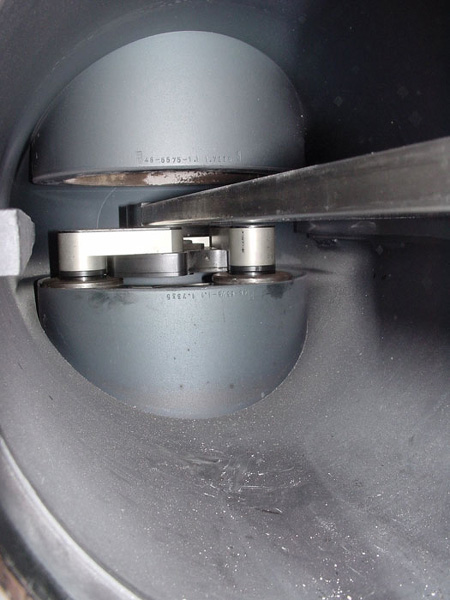

The grinding heads of the planet grinding disks are infinitely adjustable according to the required working diameter.

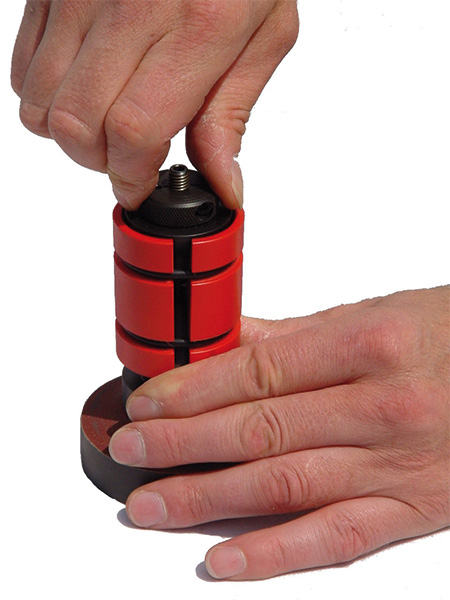

Solid flat grinding disks DN 10-400 mm (3/8” – 16”)




HTS
unigrindgallery
More information?
unigrinddownload

unigrind HTS

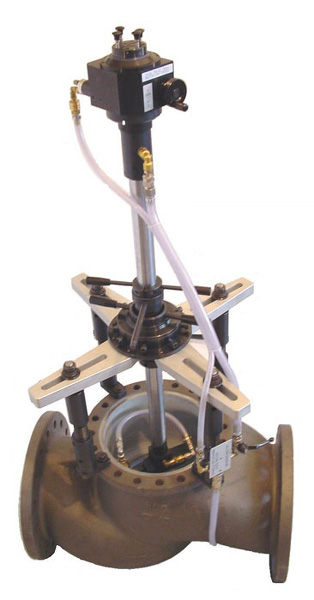

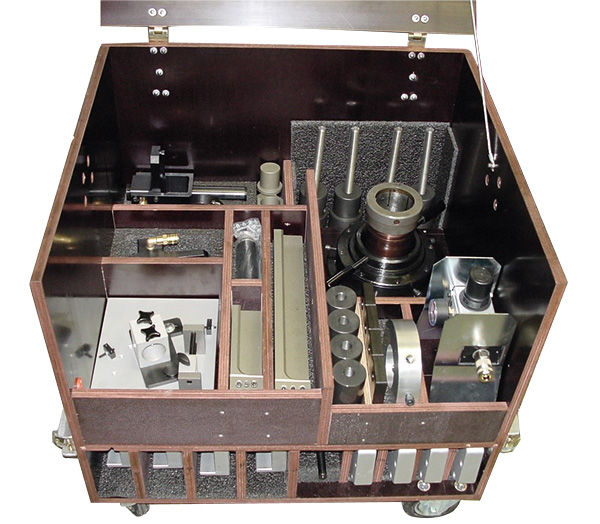

Portable high speed grinding machine for flat and tapered sealing surfaces in:

  • Control valves
  • Globe valves
  • Check valves
  • Safety relief valves

Working range: DN 50 – 1000 mm (2" - 40")

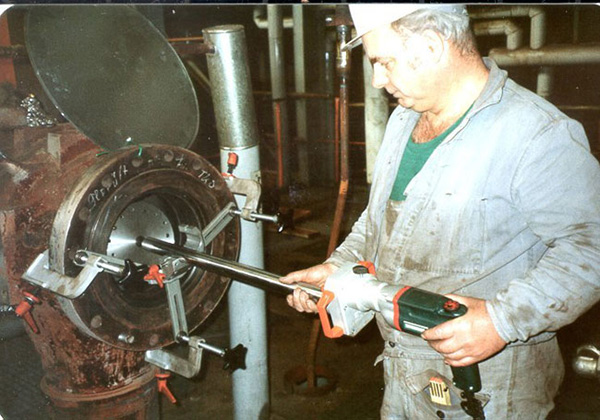

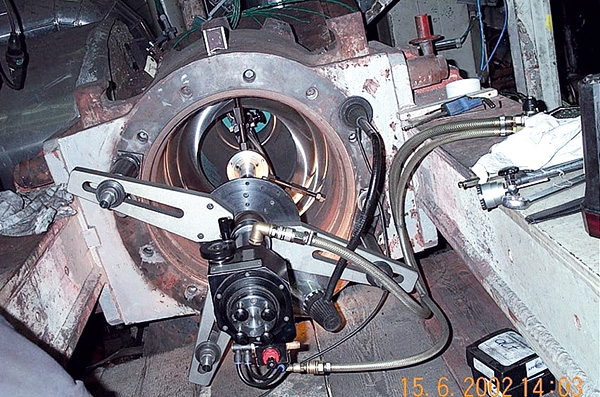

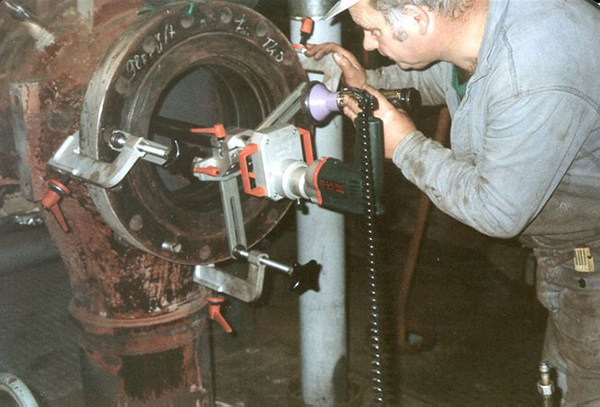

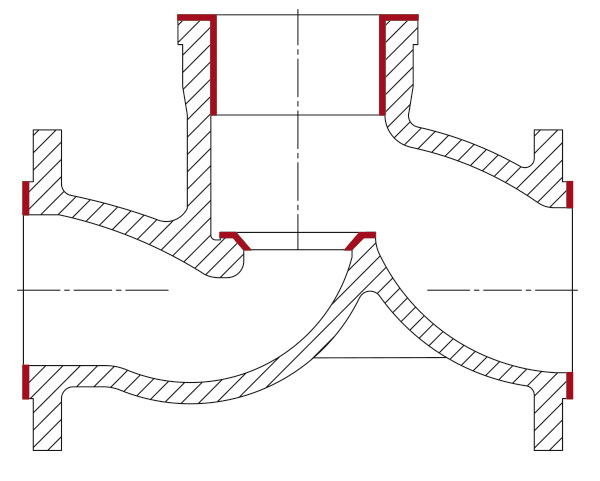

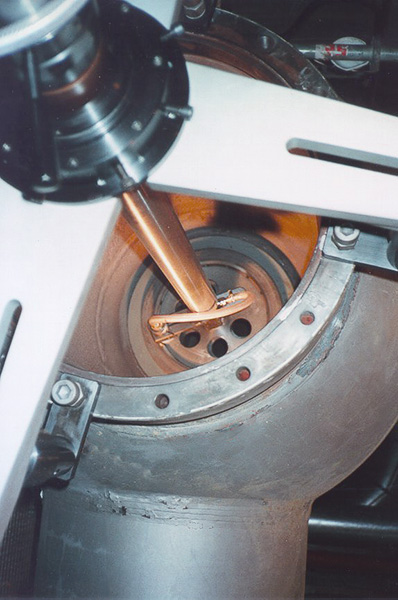

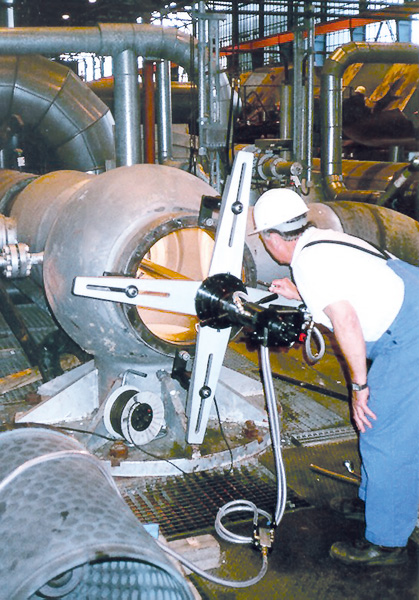

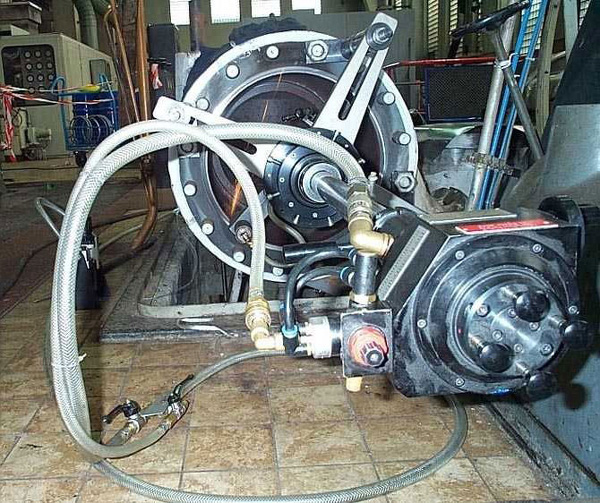

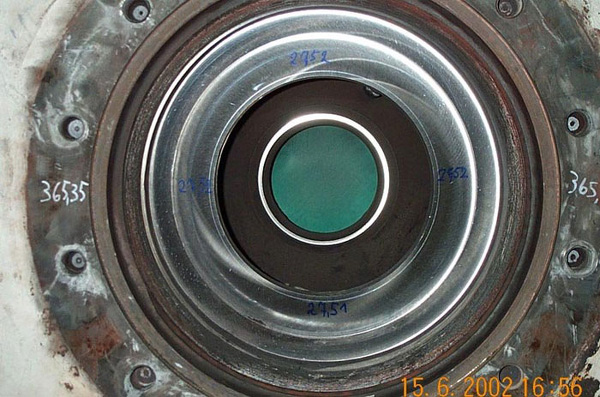

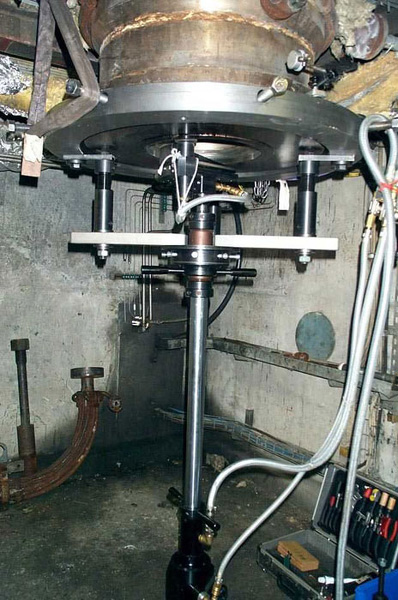

Suitable for accurate grinding of heavily damaged flat, tapered and cylindrical sealing surfaces. On-site operation in each mounting position or in-shop.
